Series illustrations. Actual configuration is subject to the confirmed drawing.

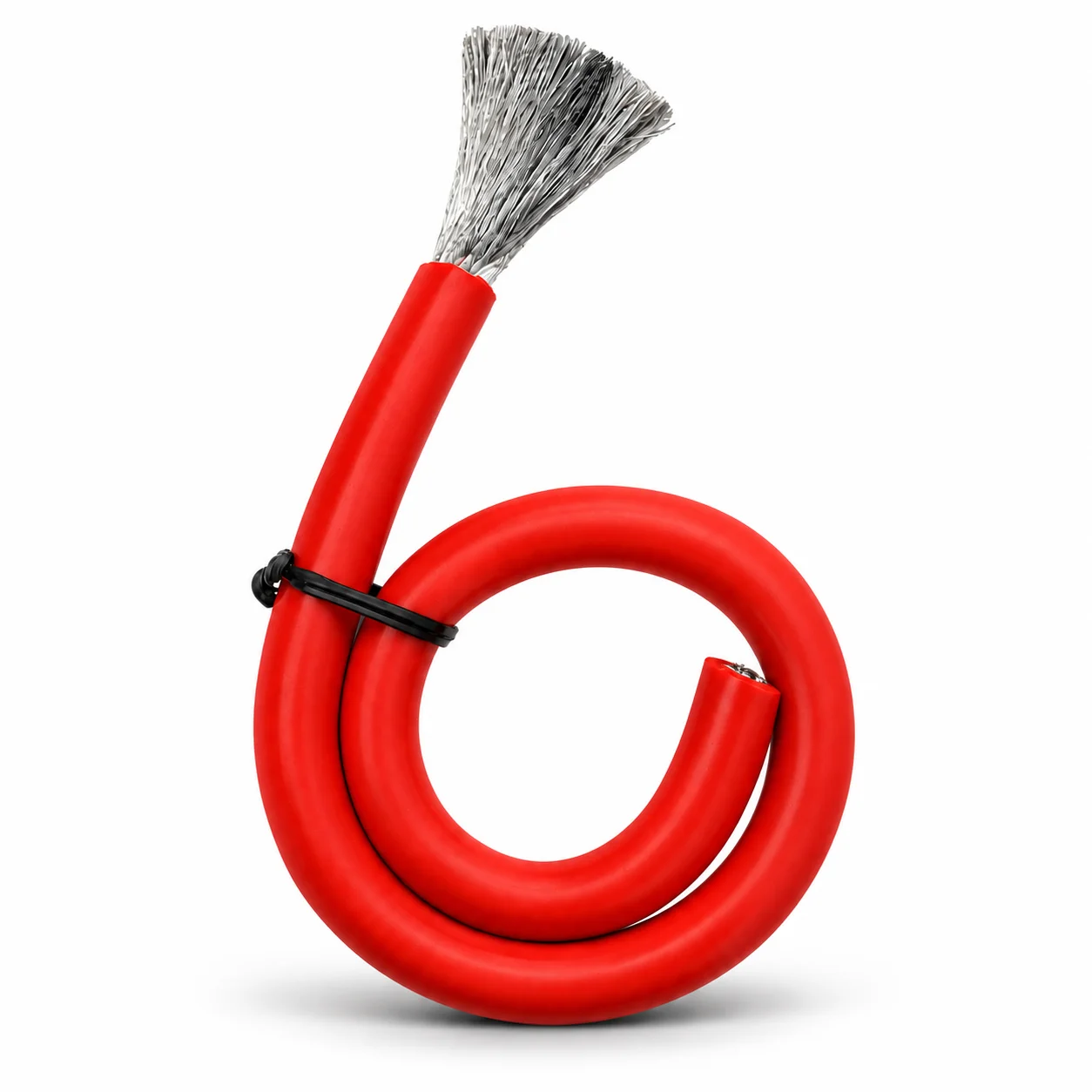

Soft 1–24AWG 600V High-Temperature Silicone-Sheathed Automotive Electrical Wire for 200°C Duty Enquiries
-
When You'll Get It:Nov 26 - Nov 30
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
-
Conductor MaterialTinned Copper, Pure Copper or as requestDiameter12 AWG, 20 AWG, 22 AWG, 24 AWG, 8 AWG, 14 AWG, 16 AWG, 18 AWG, 6 AWG, 2 AWG, 4 AWG
-
Insulation MaterialSiliconeRated Voltage600V
-
ApplicationAuto, Electronics, Medical Equipment, Electric Appliance, Motor Winding, Transformer, Railway, Heating, Industrial, Electrical equipment, equipment wiring, Ectronic internal wiring
-
Conductor TypeStrandedShapeRound
-
Single Wire Size0.1 mm, 0.3mm, 0.2 mm, 0.4mm, 0.5mm, 0.6 mm, 0.8mm, 0.7mm, 0.9 mm, 1.0mm, 1.1 mm, 1.2 mm, 1.3 mm, 1.5 mm, 1.4 mm, 1.6 mm, 1.7 mm, 1.8mm, 2.0 mm, 1.9 mm, 2.2 mm, 2.1 mm, 2.3 mm, 2.4 mm, 2.5 mm, 2.6mm, 2.7 mm, 2.8 mm, 2.9 mm, 3.0mm, CustomWorking Temperature0 °C ~ 50 °C, 105 °C, 0 °C ~ 70 °C, 0 °C ~ 90 °C, -20 °C ~ 0 °C, 250°C, -30 °C ~ 105 °C, 50 °C ~ 100 °C, -55℃~150℃, -60℃-200℃, or other
-
TypeInsulatedProduct nameSingle core Silicone electric wire
-
PAYMENT TERMS45% deposit in advance,55% balance against B/LDelivery time3day for sample; 7day for bulk order
-
UsageLithium Battery,Inverter,Aviation model,Robot Arm,UAV;ServiceOffer datesheets, sample, testing report,quality system audit report
-
Rolling TypeExport wooden drum/ plastic drum/ wooden box/ iron drum or customSampleExcellent Free Sample Experience
-
OEM ODM AcceptInsulation material/ Conductor Type & construction/Connector/ PackingSize1-30 AWG ( or as your request )
-
FeatureTemperature Resistant ,Oil Resistant,VW-1 FT-1 Flame Resistance
Soft silicone-sheathed wire is presented for automotive electrical wiring enquiries across 1–24AWG. The described component has a round, stranded single core and a 600V rating. Define the individual gauge and the finished construction required by the vehicle equipment or electrical assembly being evaluated.
What does the automotive connection actually require?
Give circuit load, surrounding conditions, route and connection space with the required working-temperature range. A 200°C duty request needs a matching conductor and insulation construction. Specify the full operating range and continuous duty so the material review addresses the intended installation.
Choose the copper and the requested AWG size together
Tinned copper, pure copper or requested conductor materials are named, with individual strand sizes from 0.1–3.0mm or custom. Supply the strand count and conductor dimensions with the finished silicone diameter. The quotation and evaluation sample should identify the same selected wire.
Set the evidence scope for that electrical assembly
Temperature, oil and flame resistance are described. Request applicable VW-1 or FT-1 documents where the project requires them, together with the offered datasheets and test or quality-system audit reports. State any vehicle-equipment standard that the chosen construction must satisfy for your assessment.
Free samples and a 1m option are offered. Silicone options include 16, 17, 18, 20, 22, 24, 26 and 30 AWG; obtain the matched supply details for the requested gauge. Custom insulation, conductor construction, connectors and drum, box or other packing can be discussed. Give the finished lead lengths and total quantity with any connector-fit requirements for the particular automotive assembly.
