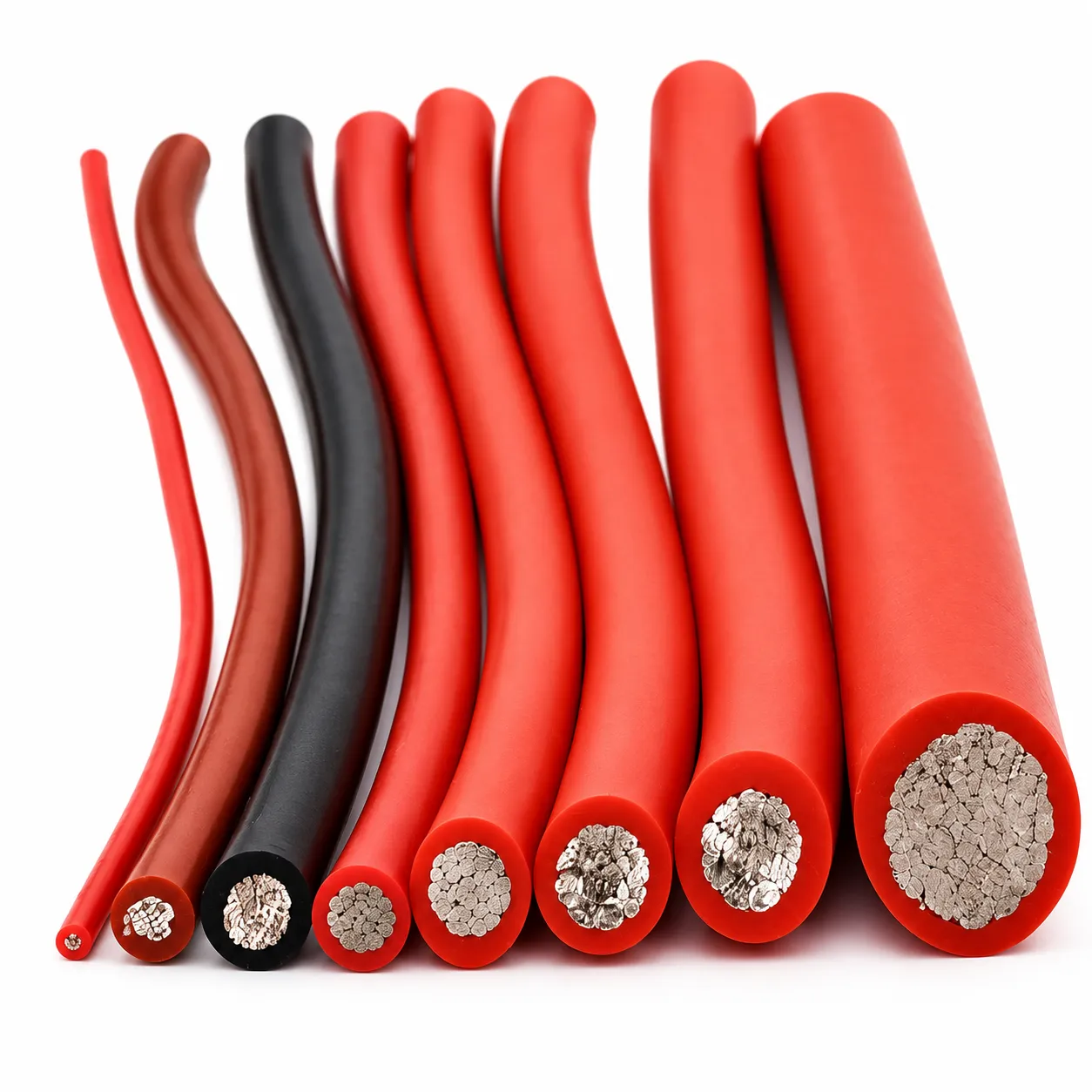

Series illustrations. Actual configuration is subject to the confirmed drawing.
12AWG/3.5mm² Soft Flexible Silicone Lithium-Battery Cable, 600V −60–200°C
-
When You'll Get It:Nov 26 - Nov 30
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
-
Conductor MaterialTinned Copper(custom Pure Copper or as request )Diameter30AWG, 28AWG, 26AWG, 24AWG / 0.2 mm², 22AWG / 0.3 mm², 20AWG / 0.5 mm², 18AWG / 0.75 mm², 17AWG / 1.0 mm², 16AWG/1.27 mm², 15AWG / 1.5 mm², 14AWG / 2.0 mm², 13AWG / 2.5 mm², 12AWG / 3.5 mm², 11AWG / 4 mm², 10AWG / 5.3 mm², 9AWG / 6.53 mm², 8AWG / 8.3 mm², 7AWG / 12 mm²., 6AWG / 16 mm², 5AWG / 20.1 mm², 4AWG / 25 mm², 3AWG/33.7 mm², 2AWG / 50 mm², 70 mm², 1AWG / 75 mm², 95.5 mm², 120 mm², 150 mm²
-
Insulation MaterialSiliconeRated Voltage600V
-
ApplicationAuto, Electronics, Medical Equipment, Electric Appliance, Motor Winding, Transformer, Railway, Heating, Industrial, Electrical equipment, equipment wiring, Ectronic internal wiring
-
Conductor TypeStrandedShapeRound
-
Single Wire Size0.1 mm, 0.3mm, 0.2 mm, 0.4mm, 0.5mm, 0.6 mm, 0.8mm, 0.7mm, 0.9 mm, 1.0mm, 1.1 mm, 1.2 mm, 1.3 mm, 1.5 mm, 1.4 mm, 1.6 mm, 1.7 mm, 1.8mm, 2.0 mm, 1.9 mm, 2.2 mm, 2.1 mm, 2.3 mm, 2.4 mm, 2.5 mm, 2.6mm, 2.7 mm, 2.8 mm, 2.9 mm, 3.0mm, Custom, 0.08mm for this wireWorking Temperature0 °C ~ 50 °C, 105 °C, 0 °C ~ 70 °C, 0 °C ~ 90 °C, -20 °C ~ 0 °C, 250°C, -30 °C ~ 105 °C, 50 °C ~ 100 °C, -55℃~150℃, -60℃-200℃, or other, -60℃-200℃ for this wire
-
TypeInsulatedProduct nameSingle core Silicone electric wire
-
PAYMENT TERMS45% deposit in advance,55% balance against B/LDelivery time3day for sample; 7day for bulk order
-
UsageLithium Battery,Inverter,Aviation model,Robot Arm,UAV;ServiceOffer datesheets, sample, testing report,quality system audit report
-
Rolling TypeExport wooden drum/ plastic drum/ wooden box/ iron drum or customSampleExcellent Free Sample Experience
-
OEM ODM AcceptInsulation material/ Conductor Type & construction/Connector/ PackingSize1-30 AWG ( or as your request )
-
FeatureTemperature Resistant ,Oil Resistant,VW-1 FT-1 Flame Resistance
For a lithium-battery lead, define the connection route together with the conductor and insulation. This soft, flexible silicone wire is presented in the supplied 12AWG/3.5mm² size at 600 V, with 0.08mm individual wires and a −60°C to 200°C working range.
Set the battery lead's physical envelope
Provide actual conductor dimensions, strand count and finished silicone diameter for the selected 12AWG/3.5mm² build. Include terminal fit and required finished length so the chosen wire matches the physical connection request.
- Both softness and flexibility are explicit features.
- Tinned copper is the described conductor material.
- Custom pure copper or another material is a separate request.
- The wire is round, stranded and single-core.
- The specific individual-wire dimension is 0.08mm.
Compare the stated construction with battery duty
State actual circuit load, continuous duty and routing conditions. The known −60°C to 200°C working range can be used alongside the finished dimensions in that comparison. Temperature, oil and flame resistance are described for the wire, with applicable VW-1/FT-1 scope to request where needed.
Define the selected sample and final supply
The 12AWG/3.5mm² construction is among the silicone choices offered at 1 m. Request the free sample and its technical sheet, test and quality-system audit information for review against the lithium-battery project. Specify final lengths, quantity and any custom insulation, conductor, connector or drum/box packing. Keep the terminal and connection drawing with those requirements so the material choice, wire dimensions and supply scope describe the same battery lead.
