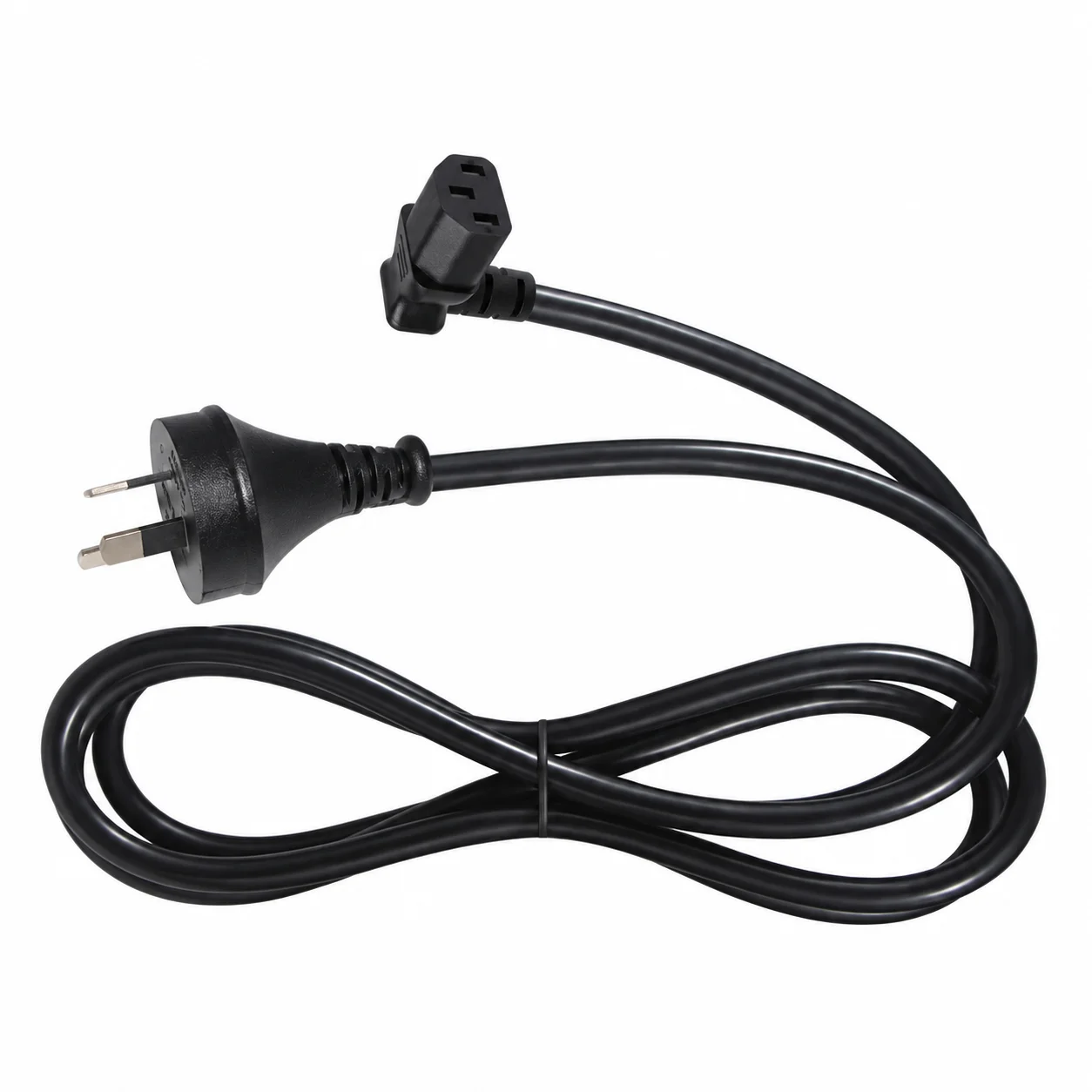

AU 3-Pin to Right-Angle IEC C13 PC PSU Power Lead Request, Black or White H05VV-F PVC Three-Core OEM Assembly Build
Share

  • When You'll Get It:Nov 26 - Nov 30

  • Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
  • AC Outlets Quantity
    1 Outlets
    Cable Length
    customizable
  • End Type
    C13
    Rated Current
    10 A, Depends on the conductor
  • Type
    Ac Power Cord
  • Application
    Home Appliance
    Female End Type
    IEC
  • IP Level
    IP11
    Male End Type
    AS
  • Material
    Copper, PVC
    Wire Type
    H05VV-F
  • Product name
    SAA Approval 3Pin Australian c5 Extension Cord
    Plug
    AU 3pin
  • Length
    0.5M,1m 1.5m 1.8m(can be customized)
    Conductor
    Copper, CCA, CCS
  • Cable
    H05VV-F 3G*0.75/1.0/1.5mm2
    Certification
    SAA, RoHS
  • Jacket
    PVC
    Color
    Black,white
  • Warranty
    12 Months

An OEM PC power-unit lead should be defined by the actual receiving inlet, cable route and selected wire construction. This AU three-pin-to-right-angle-C13 request has H05VV-F/PVC construction, black or white choices and a three-core assembly requirement.

Define the PC power-unit connection

Compare the angled C13 end with the actual PSU or receiving-equipment inlet. Specify the cable-exit direction needed at that position.

Check the AU supply form against the source used by the installation. Keep the PSU inlet, source connection and angled-end space in the OEM mating detail.

Select the cable build for the assembly

Three-core area requests span 0.75mm², 1.0mm² and 1.5mm². Agree the actual conductor composition with the selected area and H05VV-F/PVC requirement.

Specify the complete electrical rating for that ordered wire and connector build. The operating voltage and permissible current should follow the actual assembly rather than be assumed from the PC category.

Set the OEM route and finish

Reach requests include 0.5m, 1m, 1.5m and 1.8m, with custom length available. Identify the actual path between the supply and receiving unit, including connector positions.

Choose black or white with the selected wire area and required length. These details distinguish the requested version when several PC equipment positions need different cable arrangements.

An OEM brief should identify both mates, the PSU connection, cable exit, conductor build, finish and route. It gives the requested AU/C13 assembly a specific physical and electrical definition for the receiving equipment installation.
