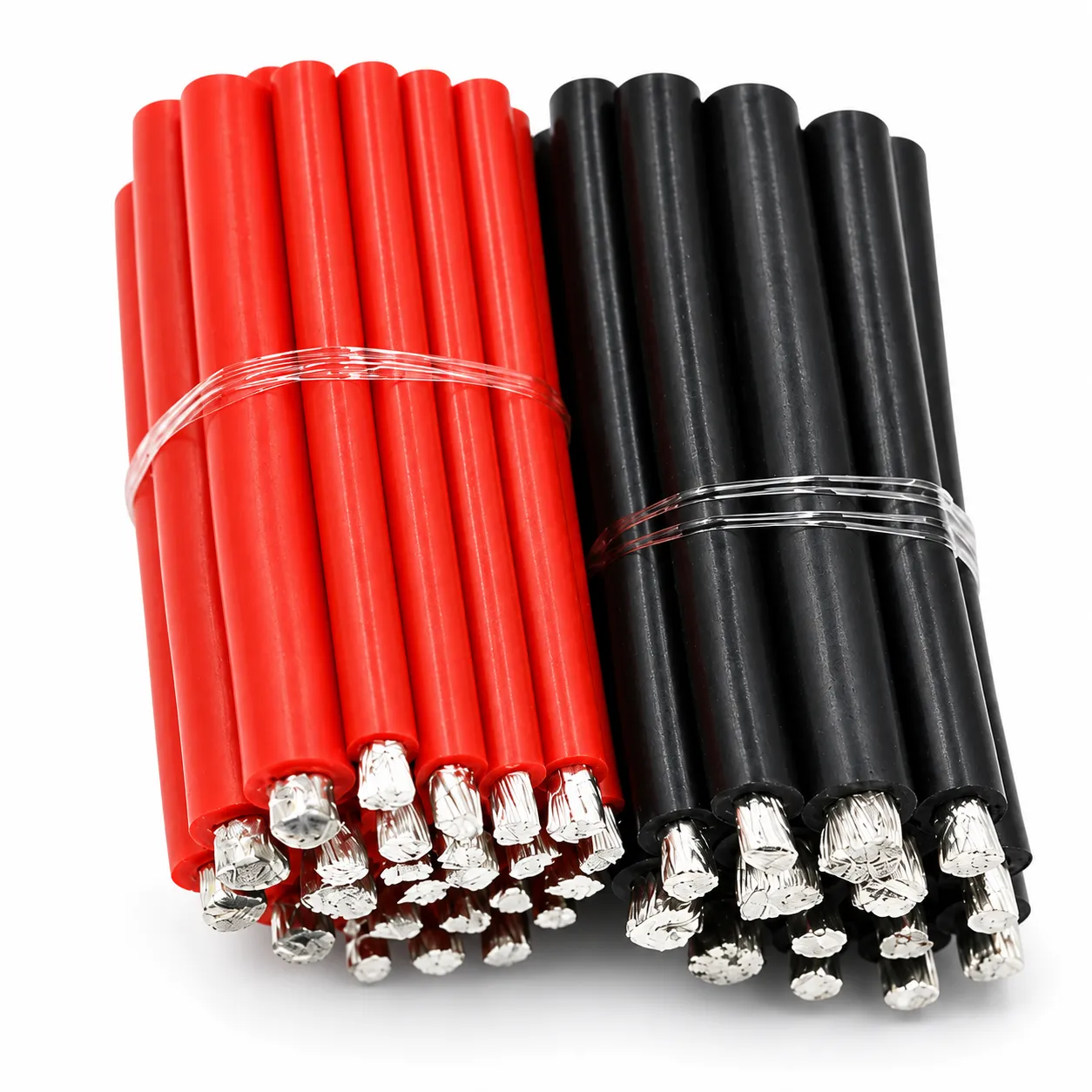

Series illustrations. Actual configuration is subject to the confirmed drawing.
Flexible AWM3135 600V Tinned-Copper Silicone Power Wire for 1/0, 2/0, 3/0 and 4/0AWG, 200°C Duty Enquiries
-
When You'll Get It:Nov 26 - Nov 30
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
-
Conductor MaterialTinned Copper, Pure Copper or as requestDiameter12 AWG, 20 AWG, 22 AWG, 24 AWG, 8 AWG, 14 AWG, 16 AWG, 18 AWG, 6 AWG, 2 AWG, 4 AWG
-
Insulation MaterialSiliconeRated Voltage600V
-
ApplicationAuto, Electronics, Medical Equipment, Electric Appliance, Motor Winding, Transformer, Railway, Heating, Industrial, Electrical equipment, equipment wiring, Ectronic internal wiring
-
Conductor TypeStrandedShapeRound
-
Single Wire Size0.1 mm, 0.3mm, 0.2 mm, 0.4mm, 0.5mm, 0.6 mm, 0.8mm, 0.7mm, 0.9 mm, 1.0mm, 1.1 mm, 1.2 mm, 1.3 mm, 1.5 mm, 1.4 mm, 1.6 mm, 1.7 mm, 1.8mm, 2.0 mm, 1.9 mm, 2.2 mm, 2.1 mm, 2.3 mm, 2.4 mm, 2.5 mm, 2.6mm, 2.7 mm, 2.8 mm, 2.9 mm, 3.0mm, CustomWorking Temperature0 °C ~ 50 °C, 105 °C, 0 °C ~ 70 °C, 0 °C ~ 90 °C, -20 °C ~ 0 °C, 250°C, -30 °C ~ 105 °C, 50 °C ~ 100 °C, -55℃~150℃, -60℃-200℃, or other
-
TypeInsulatedProduct nameSingle core Silicone electric wire
-
PAYMENT TERMS45% deposit in advance,55% balance against B/LDelivery time3day for sample; 7day for bulk order
-
UsageLithium Battery,Inverter,Aviation model,Robot Arm,UAV;ServiceOffer datesheets, sample, testing report,quality system audit report
-
Rolling TypeExport wooden drum/ plastic drum/ wooden box/ iron drum or customSampleExcellent Free Sample Experience
-
OEM ODM AcceptInsulation material/ Conductor Type & construction/Connector/ PackingSize1-30 AWG ( or as your request )
-
FeatureTemperature Resistant ,Oil Resistant,VW-1 FT-1 Flame Resistance
Flexible AWM3135 silicone power wire is presented for 1/0, 2/0, 3/0 or 4/0 AWG construction enquiries. The described wire is round, stranded and single-core at 600V. Tinned copper, pure copper or requested materials are named; specify the individual conductor needed by the equipment or power connection.
Define the requested aught-gauge conductor in the drawing
Give the required 1/0, 2/0, 3/0 or 4/0 AWG size with copper material, strand count and conductor dimensions. Individual wire-size choices span 0.1–3.0mm or custom. Add the finished silicone diameter and connector-fit requirements so the proposed component is dimensioned for quotation.
What construction should meet the 200°C duty request?
Specify the actual working-temperature range, continuous duty, circuit load and surroundings. Temperature, oil and flame resistance are described. Include the wire route and connection space with the selected gauge when the conductor and insulation are assessed for the intended operating environment.
Evaluate an aught-gauge sample and its required evidence
Identify the required aught gauge and finished AWM3135 construction in the free-sample request. Give the project's evidence requirements with the selected conductor and insulation; datasheets, test reports and quality-system audit reports are offered for review. Request applicable VW-1 or FT-1 documents if needed for the proposed power-wire component.
Agree the matched power-wire supply before ordering
A 1m option and smaller silicone choices at 16, 17, 18, 20, 22, 24, 26 and 30 AWG are provided. Obtain matched supply details for the required aught gauge. Custom insulation, conductors, connectors and drum, box or other packing can be requested with finished lengths, total quantity and the sample specification.
