Locking IEC C14 to C13 Power Cord, Pure-Copper PVC 10A Custom-Length Lead for PDU Switch Monitor Equipment
Share

  • When You'll Get It:Nov 26 - Nov 30

  • Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
  • AC Outlets Quantity
    1 Outlets
    Cable Length
    0.5 m, 0.8 m, 0.9 m, 1m, 1.2 m, 1.5 m, 1.8 m , 3 m, 5M, Customized
  • End Type
    c13
    Rated Current
    10 A
  • Type
    Ac Power Cord, C14 to C13 lock Extension Cord
  • Application
    Home Appliance, Computer, Consumer Electronics, Industrial Equipment, Instrumentation, Telecommunication
    Female End Type
    IEC
  • IP Level
    IP11
    Male End Type
    IEC
  • Material
    PVC
    USB Type-C Ports
    1 Ports
  • Wire Type
    SJT, SJTO, SJTOW, SJTW
    Plug Rating
    250V, 125V
  • Plug Current
    10A, 2.5A,
    Plug
    Euro, IEC, SAA, NEAM,Brazil, Italy are available
  • End Connector
    IEC C5, C7,C13,C14, C15, Right Angle C14, Right Angle C13
    Cable
    SVT SJT 18AWG, HO5VV-F 3G 0.75mm2
  • Length
    1m or can be customized
    Color
    Black, white, or others
  • Conductor
    Pure Copper
    Warranty
    12 Months

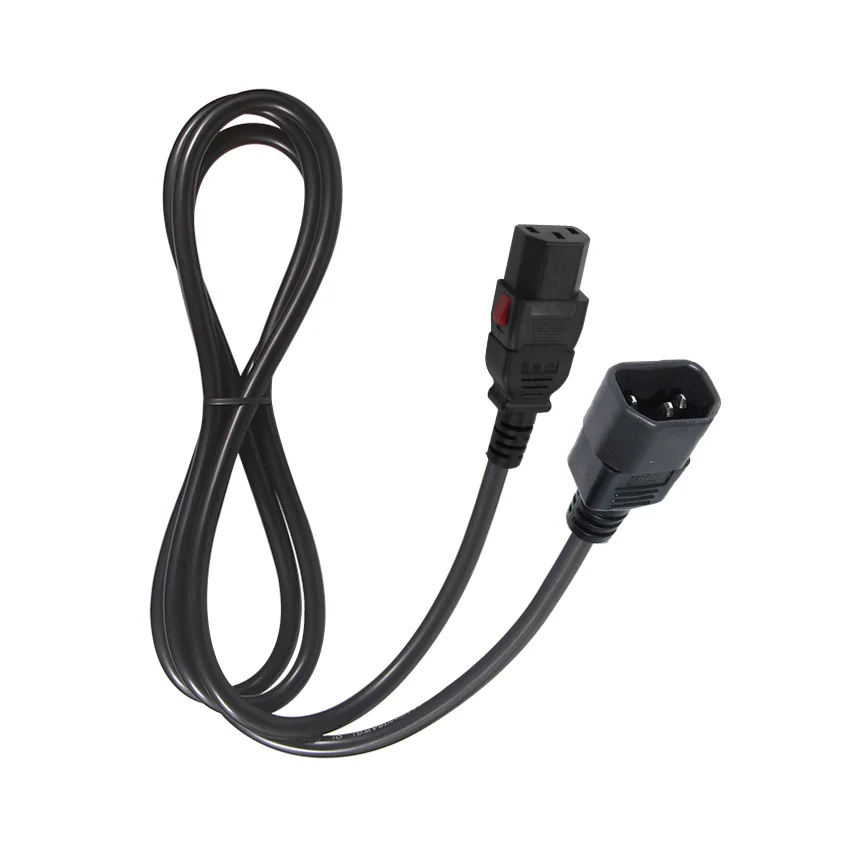

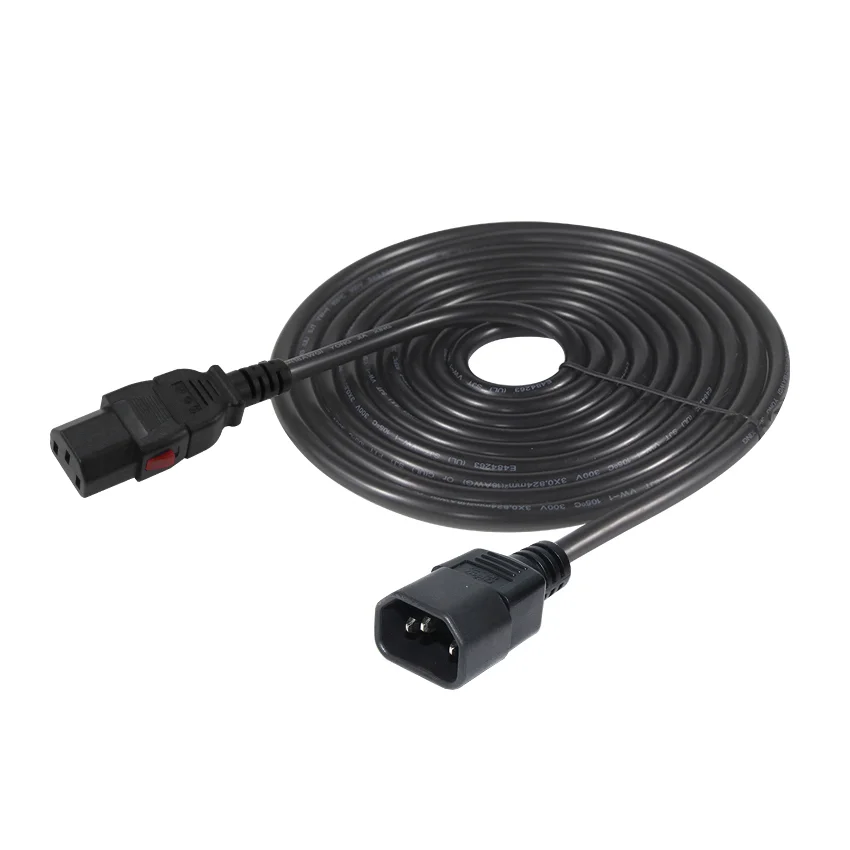

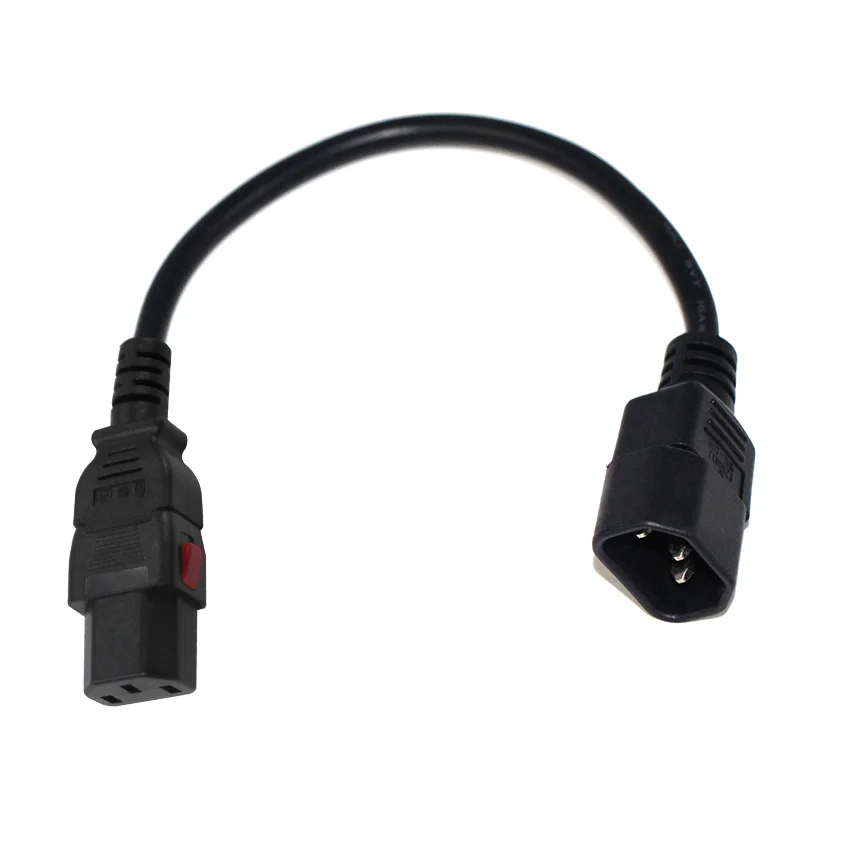

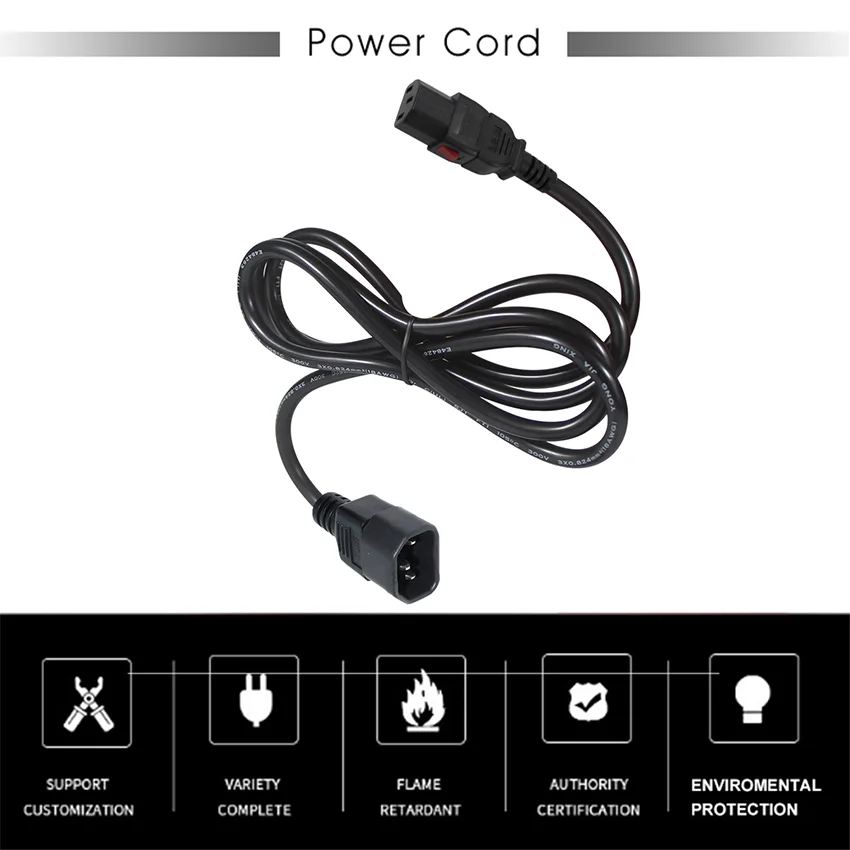

A locking equipment lead needs the connector pair and retention fit checked together. This black C14-to-C13 power cord uses pure-copper conductors and PVC material, with a 10A designation for the required equipment route.

The actual locking connection should suit the receiving equipment. Include the required connector arrangement with the regional configuration and wire-build request before the version is selected.

Confirm the regional and locking arrangement

Regional configuration requests include US, AU, CN, EU, IT, South Africa and UK. Confirm the actual supply and equipment connector forms for the ordered version rather than treating a regional name as the whole connection specification.

Check the locking fit on the particular PDU, switch, monitor or other equipment. The C14/C13 forms and retention arrangement should be agreed with the receiving unit.

Choose reach and cable construction

Length requests include 0.5m, 0.8m, 0.9m, 1m, 1.2m, 1.5m, 1.8m, 3m and 5m. Custom reach is available to discuss for the actual equipment positions.

Specify an 18AWG SVT/SJT build or a three-core 0.75mm² H05VV-F construction. Confirm the actual cable version with the selected reach and pure-copper/PVC requirement.

Match the complete electrical requirement

The 10A designation needs to be considered with the complete operating voltage and equipment demand. Confirm the full rating for the actual connector arrangement and cable build.

Keep the locking fit, mating points, route and electrical requirement in one specification. These details identify the version needed more clearly than a general equipment-cord description.

A useful inquiry includes the receiving-unit connection detail alongside the required reach. It gives the locking lead a defined role in the installation.
