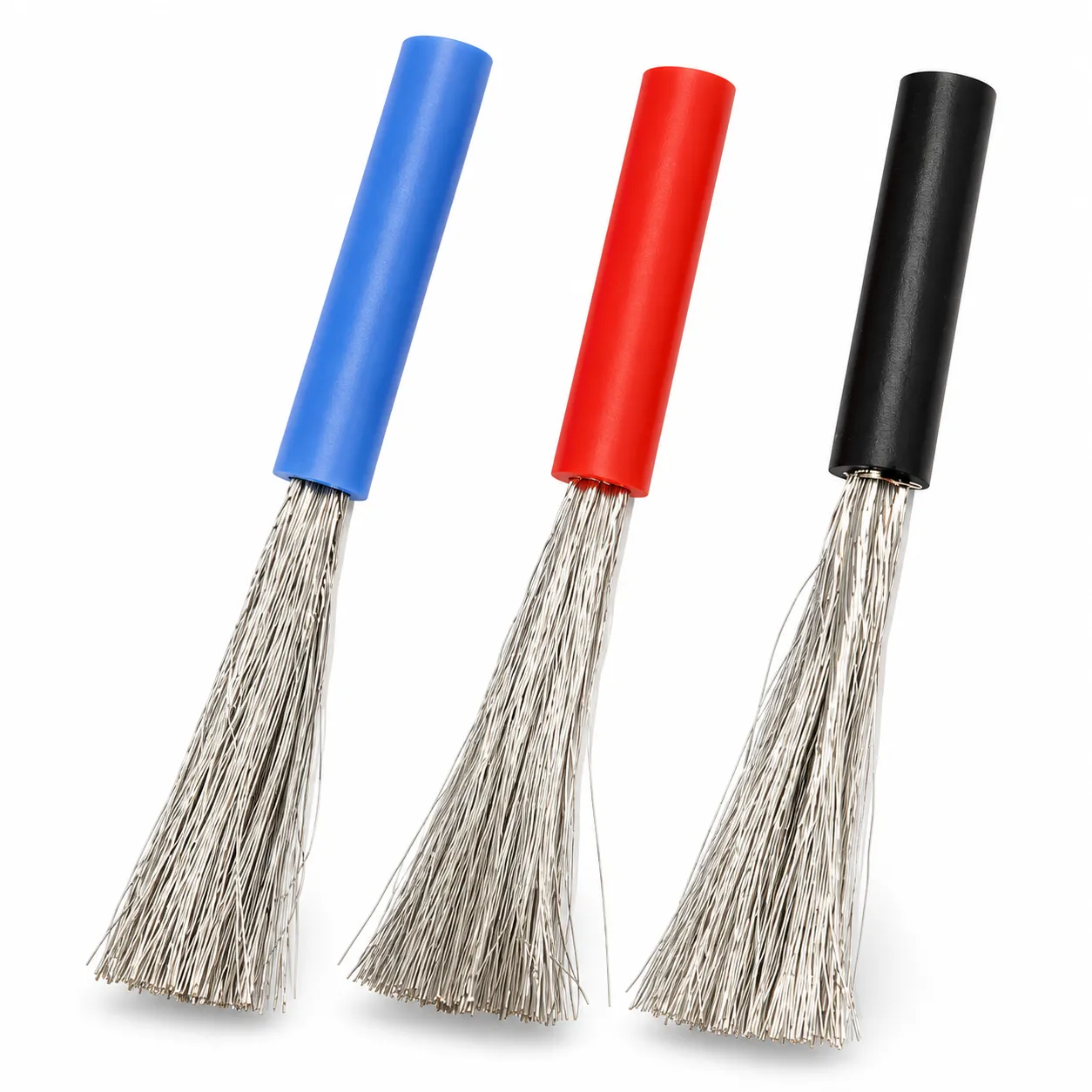

Flexible tinned-copper silicone battery cable is presented for battery-management-system and inverter connections in a requested 8AWG or 8.3mm² construction. The described electrical component is round, stranded and single-core at 600V. Pure copper or requested material alternatives are also named for the proposed conductor.
Define the BMS or inverter lead on the required size basis
Draw the required 8AWG or 8.3mm² battery conductor with its copper material, strand count and finished silicone dimensions. The offered individual strand-size choices span 0.1–3.0mm, with custom construction open to enquiry. Include the connector fit and connection space needed by the BMS or inverter so the sample identifies the proposed lead.
What operating duty applies to the battery connection?
Give circuit load, complete working-temperature range, continuous duty and surroundings. This battery cable has described heat, oil and flame resistance. Include routing and available assembly space when the selected conductor and insulation are evaluated for the intended BMS or inverter connection.
Request the matched construction for sample assessment
Identify the required 8AWG or 8.3mm² wire in the free-sample enquiry. Request its datasheet and any test or quality-system audit reports needed for review, including applicable VW-1 or FT-1 scope where required. Give the actual equipment requirements with the selected conductor and insulation specification.
Set the battery lead lengths and requested supply format
Obtain size-matched supply details with finished lengths and total quantity. A 1m option is offered alongside silicone choices at 16, 17, 18, 20, 22, 24, 26 and 30 AWG. The enquiry can include custom insulation, conductor construction, connectors and drum, box or other packing with the selected sample drawing and actual battery-duty requirements.
