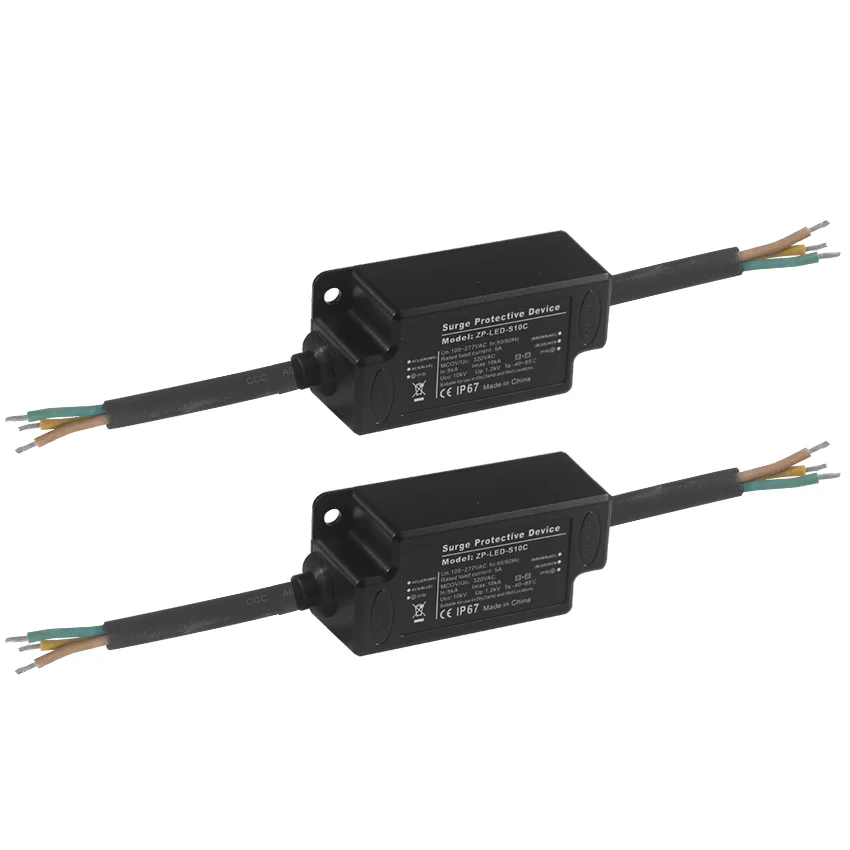

Roadway LED AC Surge Protector SPD | Selected Series Parallel and 10kV Uoc Rating Scope
-
Quotation & delivery: Include your required quantity, destination and timing in the enquiry. Confirm the selected build, lead time, shipping charges and any return terms in the agreed quotation before ordering.
-
Product NameSurge Protective Device
-
Nominal Operating Voltage/Un100-277VAC,50(60)HzRated load current5A
-
Maximum Continuous Operating Voltage/Uc320VACNominal Discharge Current/In5kA
-
Maximum Discharge Current/Imax10kAOpen-Circuit Voltage/Uoc10kV
-
Protection Level/Up1.2kVTemperature-40~85℃
-
Connection methodSeries, or Parallel
This surge-protective-device request is intended for roadway lighting and LED-lamp AC connections. Series or parallel connection requirements accompany distinct operating-voltage, load-current and surge-rating definitions, with the actual protection mode and applicable device support to be agreed for the lighting system.
Separate normal supply and load requirements
The nominal operating requirement is Un 100–277 V AC at 50/60 Hz, with a 5 A load requirement. Keep those conditions separate from Uc 320 V AC when defining the selected device and its actual lighting connection.
Agree the receiving system and complete load with the supplied SPD arrangement. The normal supply, continuous-operating scope and connected load should have clear definitions in the same specification.
Retain each surge-rating definition
Discharge requirements distinguish In 5 kA from Imax 10 kA, alongside Uoc 10 kV and Up 1.2 kV. Obtain applicable support for those selected-device surge and protection-level conditions rather than treating current and voltage test values as interchangeable operating limits.
Identify the actual protection mode and circuit connection with the intended lighting system. Those details should accompany the distinct discharge, open-circuit-voltage and protection-level requirements.
Agree connection and operating scope
Select the required series or parallel arrangement and define its actual wiring scope with the receiving equipment. Include the required -40 to 85°C conditions with applicable support for the selected device and installation.
Complete the lighting-SPD brief with normal supply, load, continuous-operating voltage, surge definitions and actual connection mode. This keeps the selected protection request tied to one defined device and lighting-system arrangement.
Provide the product reference, selected configuration, quantity and destination. Confirm drawings, applicable ratings and acceptance requirements for the requested build. Lead time, shipping arrangements, charges and any return conditions should be reviewed in the agreed quotation before ordering.
