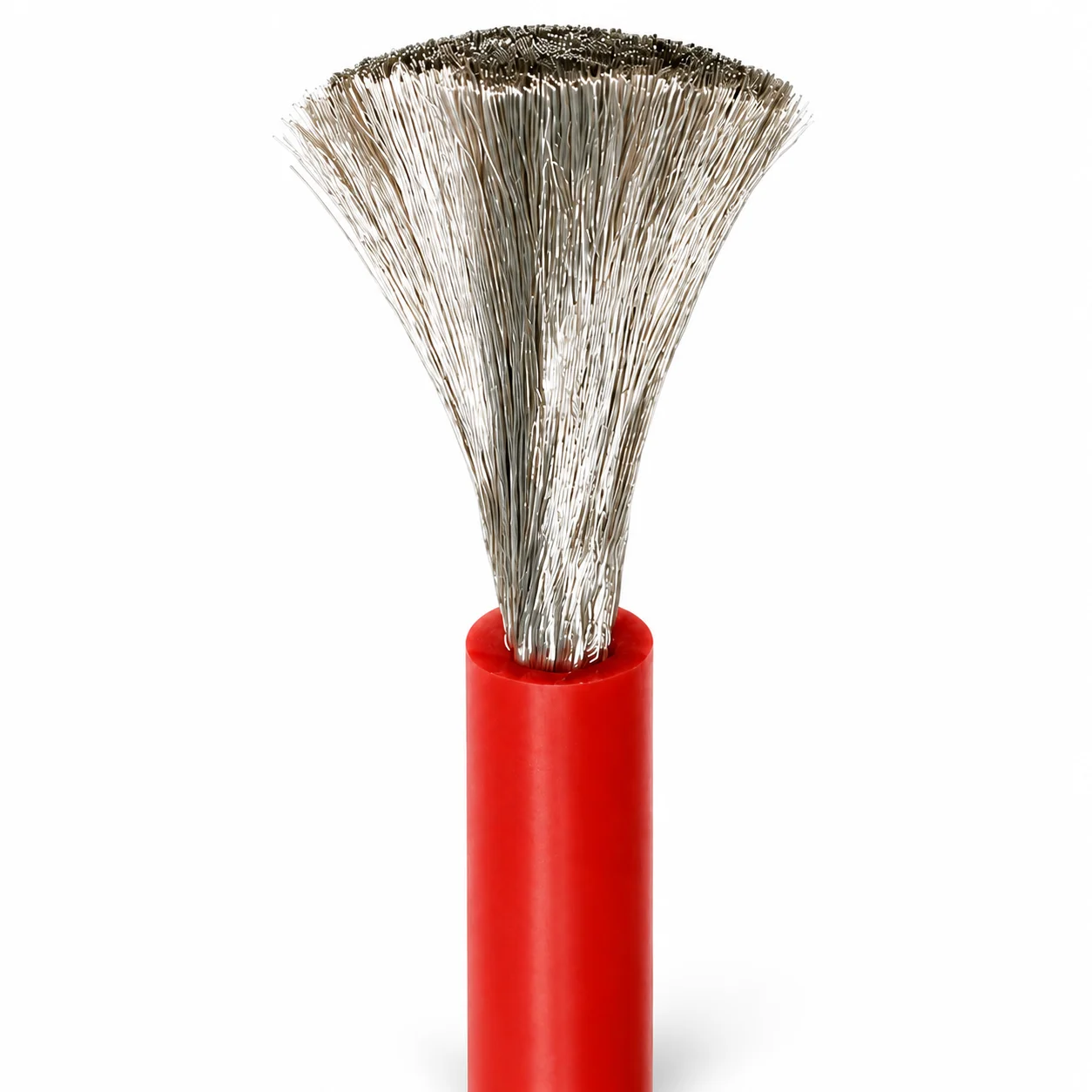

Soft flexible silicone-rubber wire is presented for high-temperature heating-equipment enquiries in ten named gauges. The sizes are 4, 6, 8, 12, 14, 18, 22, 24, 26 and 28 AWG. The described component is round, stranded and single-core at 600V, with tinned copper, pure copper or requested materials.
Describe the connection inside the heated equipment
Give the electrical connection's circuit load, full working-temperature range and continuous duty. Include surroundings, wire route and available assembly space. The selected conductor and silicone insulation should be evaluated against those actual conditions for the intended piece of heating equipment.
Define one finished wire from the ten gauge requests
Specify the required AWG size, copper material, strand count and conductor dimensions. Individual strand-size choices span 0.1–3.0mm or custom construction. Give the finished insulation diameter and any connector-fit requirements so the drawing and evaluation sample identify the proposed lead.
What sample evidence does the heated connection require?
The heating-equipment enquiry can include a free sample of the selected gauge. Give the proposed copper and insulation construction when requesting datasheets and any test or quality-system audit reports needed for material review. The wire has described temperature, oil and flame resistance; identify any required VW-1 or FT-1 evidence for that same heating-equipment lead.
Set lead lengths and packing for the selected gauge
A 1m option is provided; other silicone choices include 16, 17, 20 and 30 AWG. Obtain matched supply details for the size required by the equipment. Custom insulation, conductor construction, connectors and drum, box or other packing can be requested with finished lengths, total quantity and the chosen sample specification.
