Series illustrations. Actual configuration is subject to the confirmed drawing.
USB-C Male to DC5521 Male PD Trigger Power Cable for Router | Copper PVC Selected 3A Profile
-
Quotation & delivery: Include your required quantity, destination and timing in the enquiry. Confirm the selected build, lead time, shipping charges and any return terms in the agreed quotation before ordering.
-
Conductor materialCopper
-
connectorsUSB 2.0 ConnectorfunctionEco-Friendly, charging
-
materialPVCTypeUSB-C to DC PD Trigger Cable
-
usb typeType-C
-
conductorPure CopperjacketPVC
-
private moldYesshieldingNon-Shielded
-
useTablettypeUSB-C to DC PD Trigger Cable
-
cablepvc jacketcable wire2464 28awg,24awg,20awg
-
JacketPVCvoltage5v 9V 12V 15V 20V
-
cable colorblacklength1m,1.2m,1.5m,1.8m,2m,3m
-
connectornickel ,goldCertificationRoHS

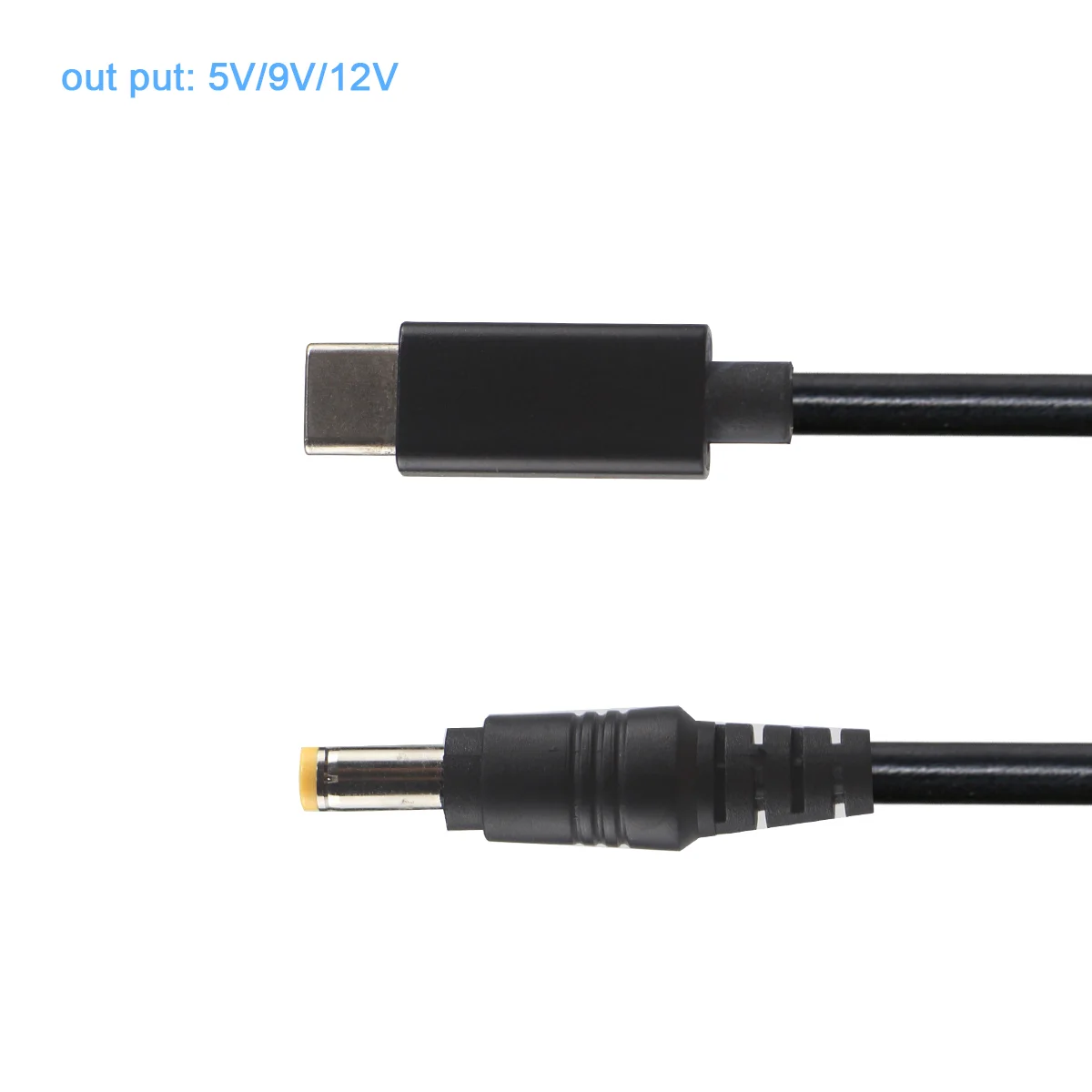

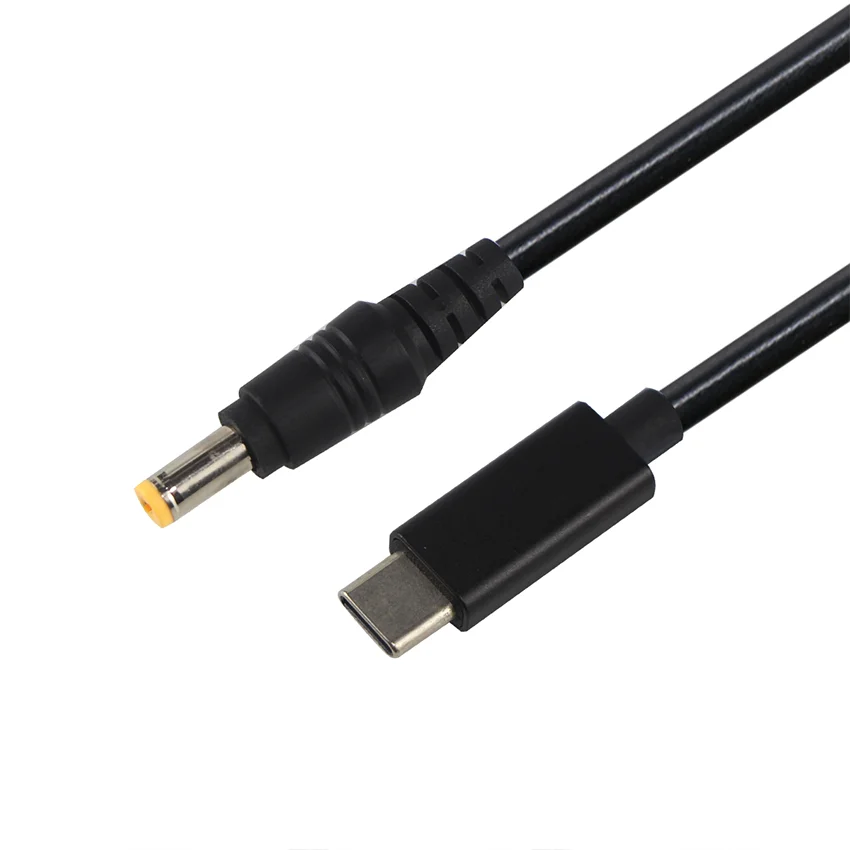

This black PD-trigger power lead joins USB-C male and 5.5 × 2.1 mm male DC connections for router or tablet requirements. Pure-copper conductors, PVC construction and a non-shielded build accompany seven actual reach choices between 0.5 and 3 m.
Select the router or tablet power profile
Agree the required 5, 9, 12, 15 or 20 V trigger output and the scope of the featured 3 A current requirement. Match the complete selected profile and power demand with the actual PD source and receiving device.
Retain the trigger function within that source-to-device connection. Voltage, current and wire construction should describe the same supplied configuration rather than independent alternatives combined into one output.
Check both male ends
Confirm the USB-C receiving interface and the DC5521 socket with the intended equipment. Agree barrel polarity, pin assignment and connector space so the actual mating arrangement is clear at each end.
Choose one of the seven reaches
Actual length choices are 0.5, 1, 1.2, 1.5, 1.8, 2 and 3 m. Identify the exact supplied reach for the route between the PD source and router or tablet, retaining the black appearance in that choice.
Complete the wire and finish specification
Select actual 2464 wire construction in 28, 24 or 20 AWG with nickel or gold connector finish. Keep the pure-copper/PVC non-shielded requirements associated with the chosen electrical profile and end arrangement.
Define any applicable USB/data-function conditions with the actual equipment and supporting scope. Complete the trigger-lead brief with exact reach, wire, plating, barrel polarity and device demand for the selected power connection.
Provide the product reference, selected configuration, quantity and destination. Confirm drawings, applicable ratings and acceptance requirements for the requested build. Lead time, shipping arrangements, charges and any return conditions should be reviewed in the agreed quotation before ordering.
