Series illustrations. Actual configuration is subject to the confirmed drawing.
EU Plug to 90-Degree L-Shaped IEC C13 Computer Power Cord, 0.5m 10A 250V
-
Quotation & delivery: Include your required quantity, destination and timing in the enquiry. Confirm the selected build, lead time, shipping charges and any return terms in the agreed quotation before ordering.
-
End connectionIEC C13Conductor materialCopper
-
AC Outlets Quantity1 OutletsCable Length0.5 m(1.64ft)
-
End TypeC13, IEC C13 AngleRated Current10 A
-
TypeAc Power Cord
-
ApplicationComputer, HomeFemale End TypeIEC
-
IP LevelN/AMale End TypeCEE
-
MaterialCopper, PVCWire TypeH05VV-F
-
NameC13 Conector Cord 10a 250v 3 Pin Iec Connector European Plug CablecableH05VV-F 3C*0.75 or 1.0/1.5mm2 are other price
-
colorblackcertificatedCE ,VDE,ROHS
-
length0.5mconductorcopper
-
jacketPVCMOQ500 pcs
An EU supply plug and 90-degree L-shaped IEC C13 receiving connector define this computer power-cord enquiry. The actual option is EU C13 Angle 0.5M. The described construction uses copper conductors, PVC jacket and H05VV-F cable with a 10 A/250 V designation.

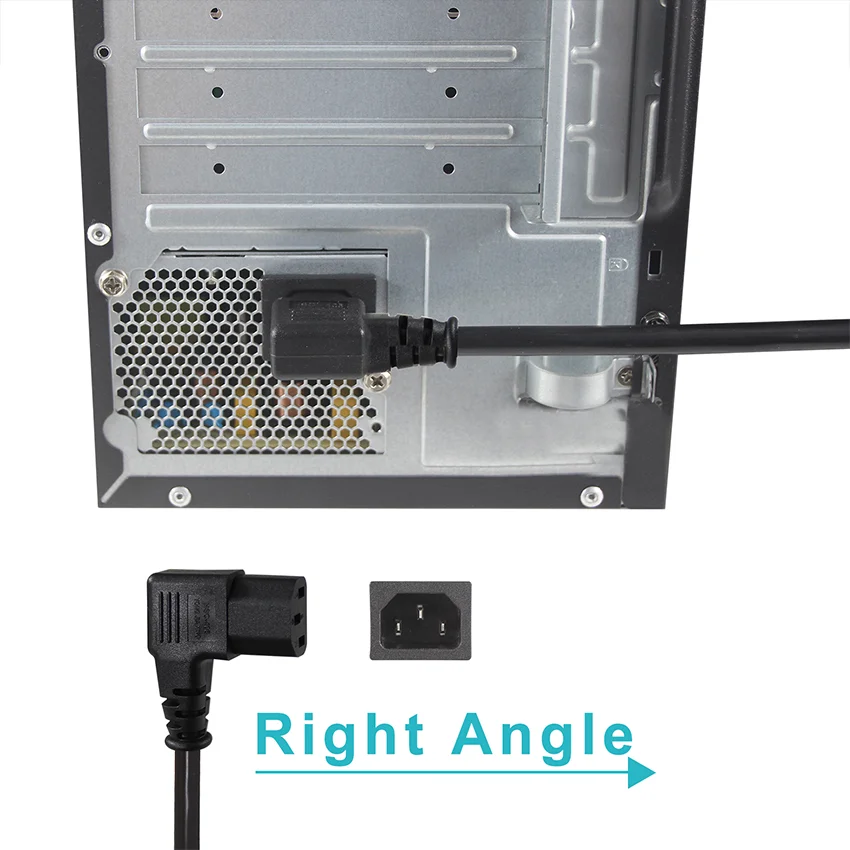

Confirm the right-angle C13 end against the equipment inlet
The L-shaped reference describes the featured angled C13 receiving connection. Confirm its exact cable-exit direction and clearance using the equipment inlet and installation drawing. Keep the EU supply-plug geometry separate from that receiving-end shape. Include both mating faces, terminal assignments and connector-body dimensions with the selected half-metre route.
- Actual length
- 0.5 m, also listed as 1.64 ft.
- Finish
- Black.
- Conductor
- Copper.
- Jacket
- PVC.
- Equipment end
- Angled IEC C13.
Select the three-core area and complete electrical scope
H05VV-F three-core 0.75mm² is described with 1.0mm² or 1.5mm² alternatives. Agree the exact area, strand construction and completed layers for the chosen lead. Confirm the whole 10 A/250 V rating against the actual source, wire, connector and computer load. State route, ambient conditions, exposure and required installation protection; the IP field gives no selected grade.
Prepare the selected angled-lead request
Computer and home connections are named applications. Provide the actual equipment interface, needed exit direction, required quantities and reviewed cable drawing. Request applicable CE, VDE or RoHS scope for the selected construction. Retain the stated 500-piece minimum order with the black 0.5 m version and exact conductor-area requirement.
Provide the product reference, selected configuration, quantity and destination. Confirm drawings, applicable ratings and acceptance requirements for the requested build. Lead time, shipping arrangements, charges and any return conditions should be reviewed in the agreed quotation before ordering.
